Observatory Director, John Blackwell, explains the recent discovery of Gravitational Waves
Gravitational Waves Explained: What The Discovery Means for Science
Last week, scientists made headlines with the announcement that they’d detected and recorded the first gravitational wave in human history. John Blackwell, Phillips Exeter science instructor and Director of the Grainger Observatory, explains how the discovery proves the last predicted outcome of Einstein’s theory of general relativity and gives astronomers the first new way of looking at the universe since Galileo pointed his telescope at the night sky.

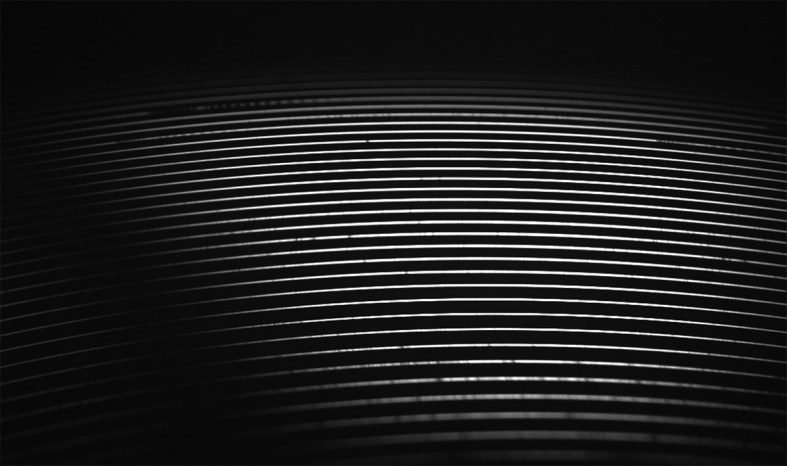

Over the past few weeks, the high resolution spectrograph was down due to our working on installation of a new control PC and the replacement of the imaging fiber. The spectrograph is an Echelle design, utilizing a grating design that overlaps 50+ orders of spectra before then being split out into separate rows on an CCD image. The raw spectra image looks like a series of curved lines, but the software does its magic, sorts out which row is which and then reconnects them all into one long, high resolution spectra.
The wavelength calibration is done using a Thorium Argon lamp at the observatory. This lamp generates many well-known emission lines that the spectrograph software then uses to set wavelength values to the spectra of objects being studied. The ThAr spectrum is below with the spectral orders labeled and the identified emission lines wrapped in green boxes.
Once the software has all this figured out, each row is calibrated for wavelength and intensity and is saved in a tremendous FITS file. Below is one small piece of that FITS file for our Sun, the region around 656.3nm, the Hydrogen-alpha line:

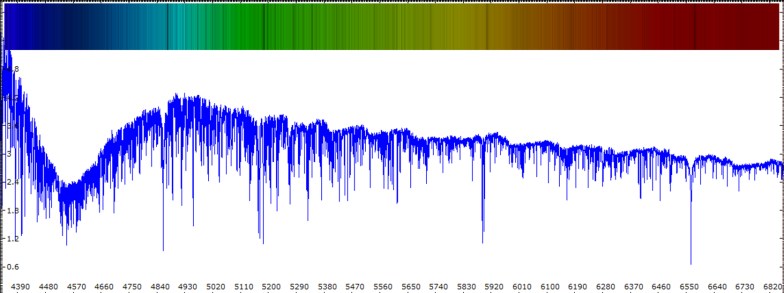

Compressed to fit the screen here is a spectrum of our sun (actually clouds above our observatory, because imaging the sun directly would be the last thing we’d want to do with this device!). The image has been saved from Shelyak Instruments EShel software and calibrated within VSpec software. Wavelengths are in ångströms. The violet side shows that we have to work on radiometric correction for the instrument…. in progress 😉
